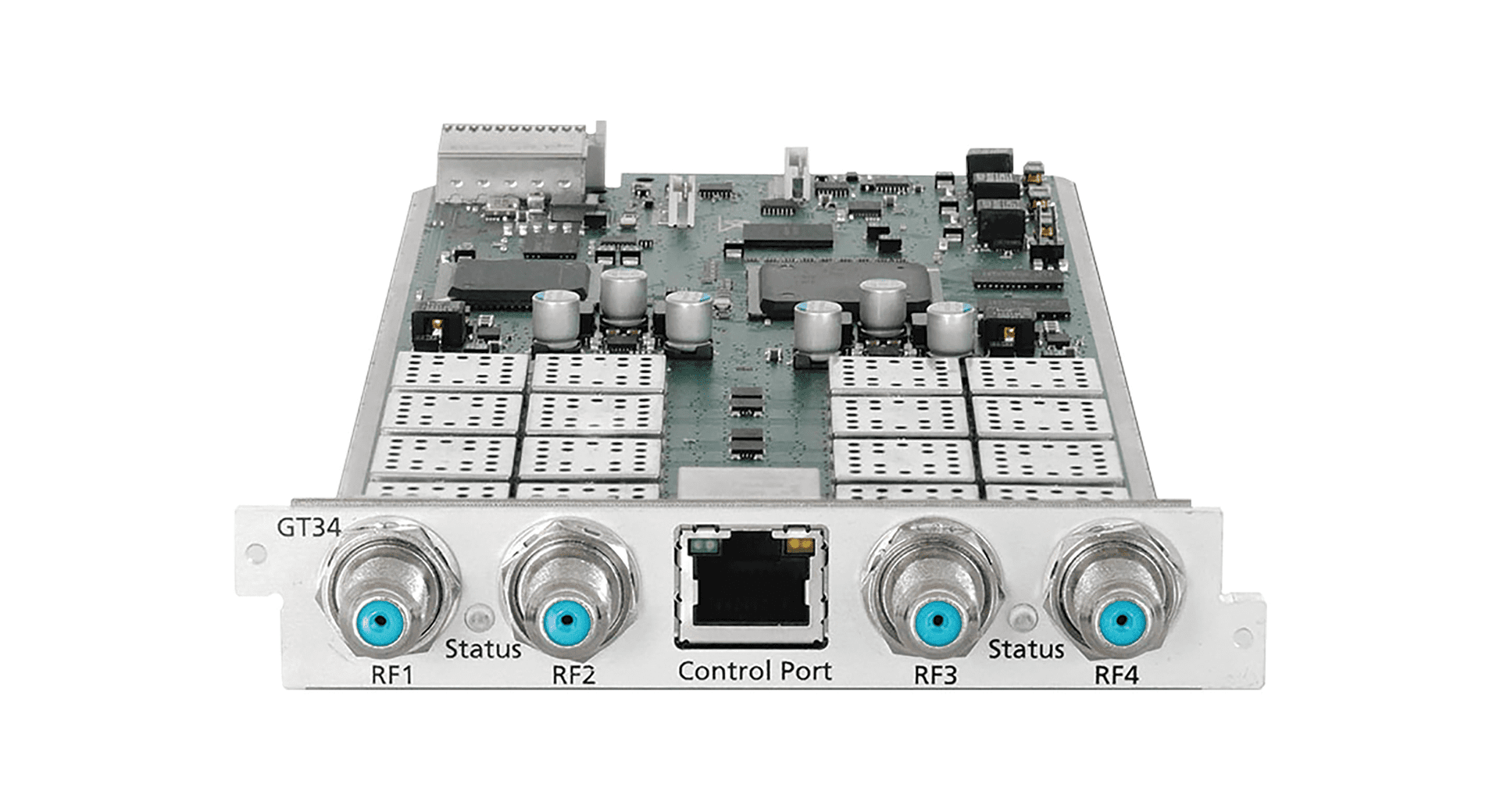

Tangram – GT34

Partner: WISI
8x/16x DVB-S/S2/S2X – IP Gateway

The GT 34 module allows you to receive up to 16 DVB-S/S2 satellite transponders and convert the streams to IP multicast or unicast transport streams. Tangram is a very high density and highly flexible solution for all kind of networks. The WISI Tangram chassis uses a fully redundant concept.

  • DVB-S/S2/S2X – IP gateway for IPTV, CATV and multi-screen solutions
  • Reception of up to 16x DVB-S/S2/S2X satellite transponders via 4 RF-inputs
  • For saving cabling costs integrated SAT mult-switch
  • Professional DVB transport stream processing
  • SPTS and MPTS streaming (CBR or VBR)
  • UDP and RTP MPEG transport stream over IP protocol
  • High-density reception of 96 transponders in 1 RU
